开发中使用到的移动终端规格一览表

Nokia手机规格资料查询

Nokia手机音频/视频支持情况列表

机型

操作系统

CPU

内存

分辨率

Nokia 6670

Nokia 6670

Symbian OS 7.0s        平台版本:Series 60 2.1

ARM4T 123MHz

8 MB

176 x 208

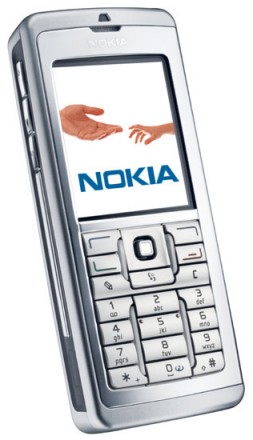

Nokia E60

Symbian OS v9.1

平台版本:Series 60 3.0

OMAP1710

OMAP1710当中包含的程序处理器型号依旧为ARM926,不过它的最大工作频率可以达到220MHz,而且绝大部分的诺基亚S60智能手机也都将频率锁定在了这个标准上。

与此同时,ARM926的一级缓存已经提升为32KB,达到了原来的2倍,依旧支持JAVA硬件加速,因此TI宣称OMAP1710比前一代处理器又有了40%提升

64 MB

352 x 416

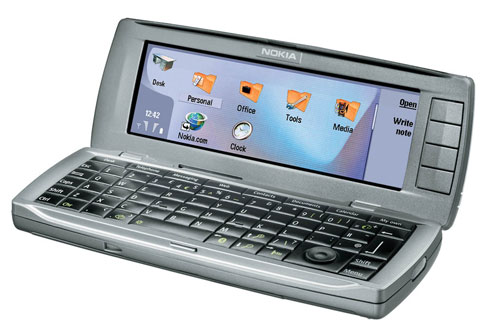

Nokia 9500

Symbian OS v7.0s

Series80 2nd Edition

OMAP1510

ARM925型程序处理器的工作频率最高可以达到168MHz,但是诺基亚只将930095009300iCPU锁定在150MHz

ARM925还拥有16KB一级缓存和与可运行内存空间共享的192KB高速缓冲区。



640×200分辨率的TFT屏幕

Dopod 595

(a.k.a. HTC MTeoR, Qtek 8600, HTC Breeze, Orange SPV C700, i-mate SPJAS)

Windows Mobile  5.0 Smartphone

Samsung CPU 300 MHz

128 MB ROM / 64 MB RAM

2.2” 240 x 320

Dopod D900

(a.k.a. HTC Universal, Dopod 900/ Qtek 9000 /T-Mobile MDA Pro / I-mate JASJAR / O2 Xda Exec / SPV M5000 / Qtek v1640)

Windows Mobile Version 5.0 Pocket PC Edition

[email protected]

PXA27X系列处理器是目前Intel公司最新款、也是最为强大的CPU了。这个家族中共有三位成员,分别是PXA270PXA271 PXA272,它们也是Intel旗下第一批嵌入Wireless MMX技术的中央处理器。同PXA26X那边的情况一样,PXA27X也不是以频率的高低来简单区分型号,它们最高可达624MHz,最低为 312MHz

ROM 128MB / RAM 64 MB

640 X 480

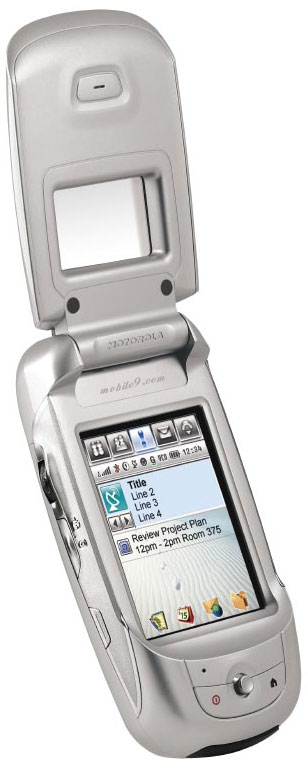

Motorola A780

基于MontaVista LinuxMotorola Linux

PXA270处理器,运行速度为312MHz

A780的内存为50Mb,并支持外接存储设备T-flash,其扩展卡槽位于机身顶端,在A780的标准配置中包含了一张128MbT-flash卡。

65536240 x 320

HP iPAQ hx4700

Windows Mobile 2003 Second Edition for Pocket PC

Intel PXA270 CPU 速度: 624MHz

ROM128M/RAM64M

4" VGA TFT64K

640 x 480

Sony Ericsson P908

Symbian OS v7.0

平台版本:UIQ 2.1

ARM 156MHz CPU

内置16MB 内存

208x320

Dopod 565

(a.k.a. HTC Typhoon, Orange SPV C500, i-mate sp3)

Windows Mobile 2003 Second Edition Smartphone

TI OMAP 730
Speed 200 MHz

- 32 MB SDRAM
- 64MB ROM

- Expansion: Built In: SD/MMC card slot

Reflective TFT LCD, 64k
Size 176 x 220 pixels

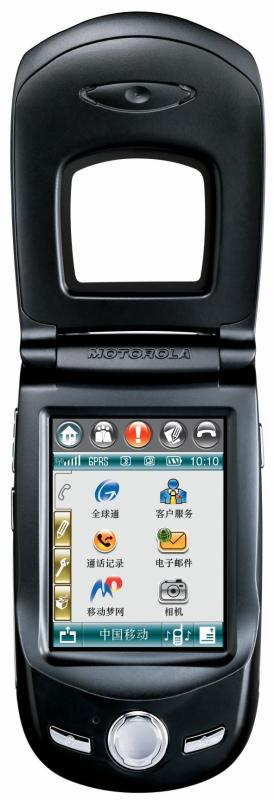

Motorola A768

Based on MontaVista Linux,

Motorola EZX Linux

StrongARM SA1110

- 206Mhz processor

- 96 MB total memory, 58 MB user accessible TFT touchscreen, 65K colors
Size 240 x 320 pixels

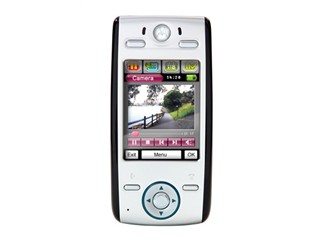

Motorola E680

Moto E680

Based on MontaVista Linux,

Motorola EZX Linux

Intel xScale

PXA270,

312MHz

50 MB (built-in, flash shared memory)
plus memory card

Type: LCD (Color TFT/TFD)
Resolution: 240 x 320 pixels (QVGA)
Colors: 65,536 (16-bit)
TFT

Motorola A1200

Moto A1200

Based on MontaVista Linux,

Motorola EZX Linux

Intel xScale

PXA270,

312MHz



8 MB built-in, flash memory

Type: LCD (Color TFT/TFD)
Resolution: 240 x 320 pixels (QVGA)
Colors: 256k(18-bit)
TFT

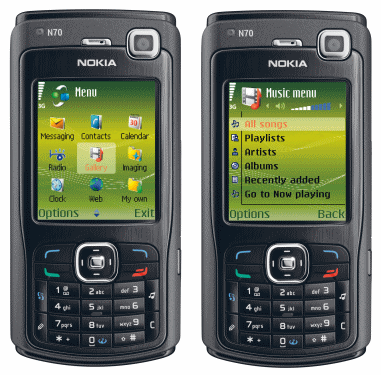

Nokia N70

Nokia N70

Operating System:

Symbian OS v8.1a

Developer Platform:

S60 2nd Edition, Feature Pack 3



OMAP 1710 (ARM architecture 926TEJ v5) - 220 MHz

Max User Storage: 22 MB

Memory Card: MMC

Memory Card Feature: Voltage: 1.8V, Hot Swap, Voltage: 3V

Unlimited Heap size

Unlimited Jar size

Resolution: 176 x 208

Color Depth: 18 bit

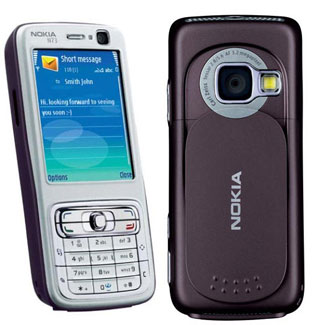

Nokia N73

Nokia N73

Operating System:

Symbian OS v9.1

Developer Platform:

S60 3rd Edition (initial release)





OMAP 1710 (ARM architecture 926TEJ v5) - 220 MHz



Max User Storage: 42 MB

NAND Memory: 128 MB

SDRAM Memory: 64 MB

~14 MB Free Executable RAM Memory

Memory Card: Mini SD

Max Memory Card Size: 2 GB

Memory Card Feature: Voltage: 1.8V, Hot Swap, Voltage: 3V

Unlimited Heap size

Unlimited Jar size

Resolution: 240 x 320

Color Depth: 18 bit

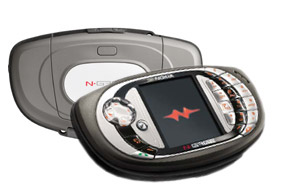

Nokia N-Gage QD

N-Gage QD

Operating System:

Symbian OS v6.1

Developer Platform:

Series 60 Developer Platform 1.0



104 MHz ARM9 Processor

Unlimited Heap size

Shared Memory for Storage: 3 MB

Unlimited Jar size

Resolution: 176 x 208

Color Depth: 12 bit

Dopod 585

Dopod 585

Microsoft Windows Mobile 2003 Second Edition for Smartphone (Magneto)

TI OMAP730 200MHz

ROM capacity: 64 MB
RAM capacity: 32 MB
Hard Disk capacity: Not supported

Colours TFT 65k colors
Size 176 x 220 pixels

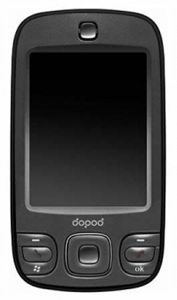

Dopod D600

Dopod D600

Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto) AKU 3.5.0

TI OMAP 850 CPU 201 MHz

ROM capacity: 128 MB (accessible: 44MB)
RAM capacity: 64 MB (accessible: 49MB)
Hard Disk capacity: Not supported

Display Type: color transflective TFT , 65536 scales
Display Resolution: 240 x 320
Display Diagonal: 2.8 "

Sony Ericsson M600i

Sony Ericsson M600i

User interface: UIQ 3
Operating system: Symbian OS v9.1

Nexperia PNX4008 ARM9 208 MHz processor from Philips

ARM926-EJ

64MB RAM and 128MB Flash ROM

262,144 colours (18-bit colour depth)

resolution 240x320 pixels

2.6 inches

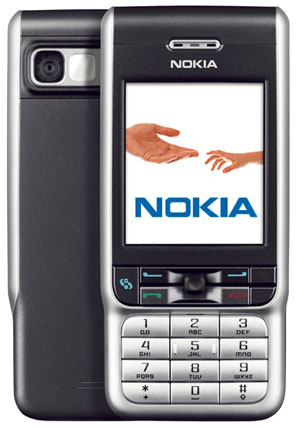

Nokia 3230

Nokia 3230

Operating System:

Symbian OS v7.0s

Developer Platform:

S60 2nd Edition, Feature Pack 1



32-bit RISC CPU based on ARM-9 series, 123 MHz

Unlimited Heap size

Shared Memory for Storage: 6 MB

Unlimited Jar size


Resolution: 176 x 208

Color Depth: 16 bit

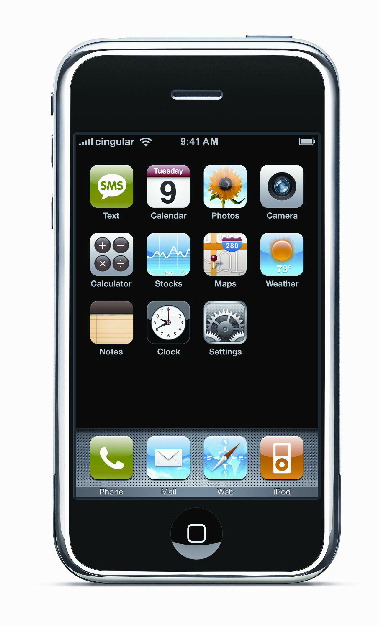

Apple iPhone

Apple iPhone

iPhone OS is the operating system that runs on the iPhone and iPod Touch. It is based on a variant of the same basic Mach kernel that is found in Mac OS X



620 MHz ARM 1176,underclocked to 412 MHz



Memory 128 MB DRAM[5]
Storage Flash memory 8 or 16 GB

320×480 px, 3.5 in, color LCD
